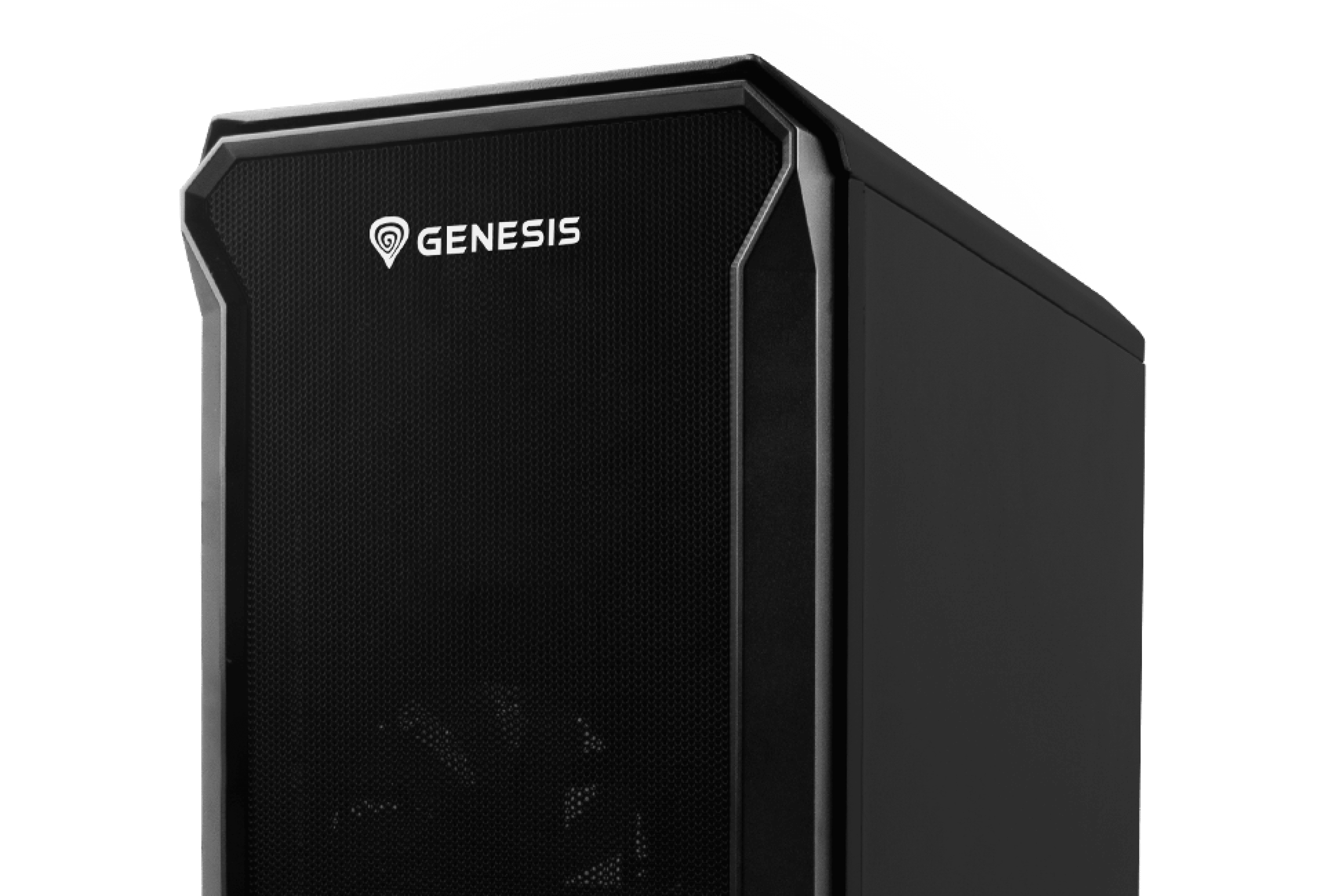

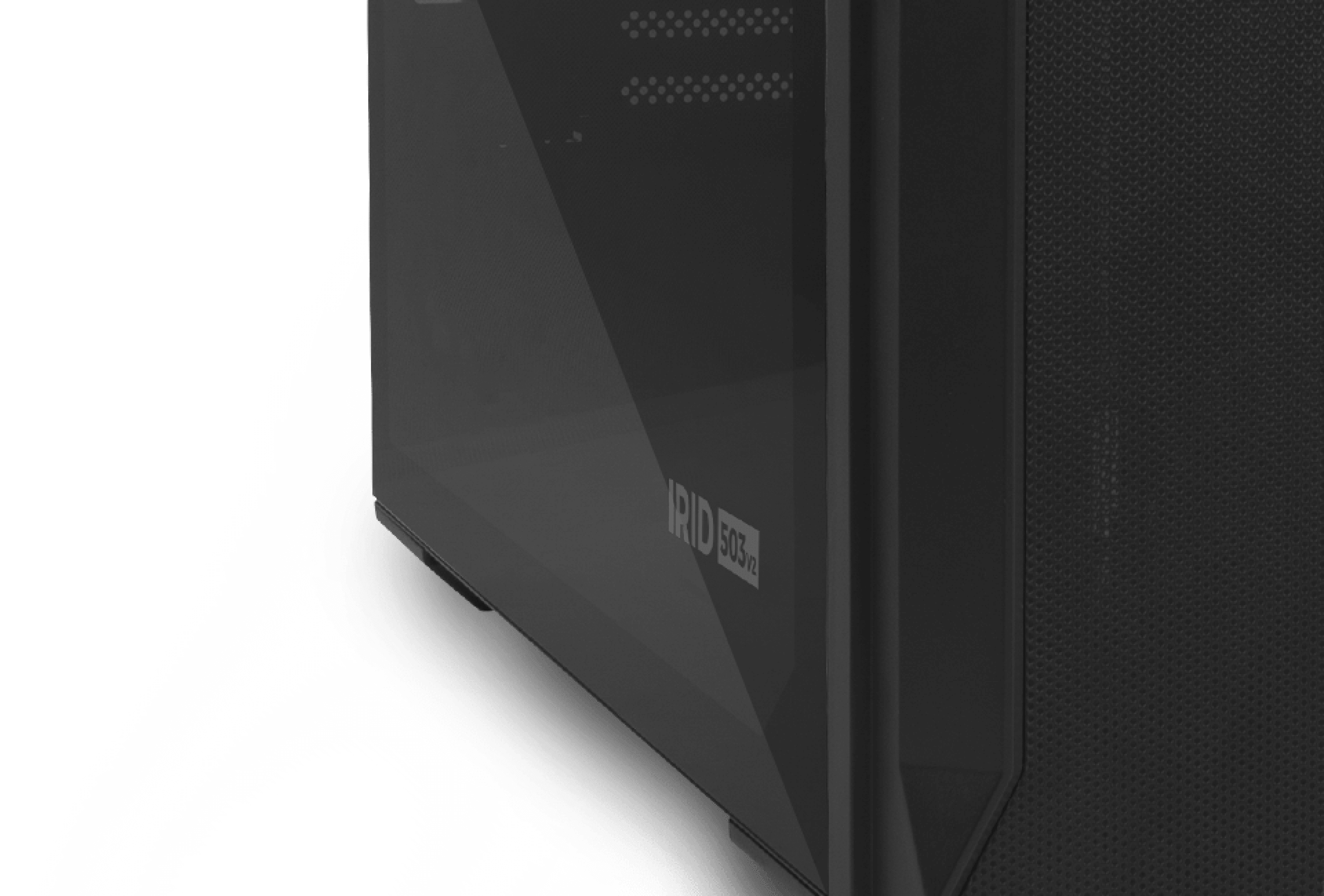

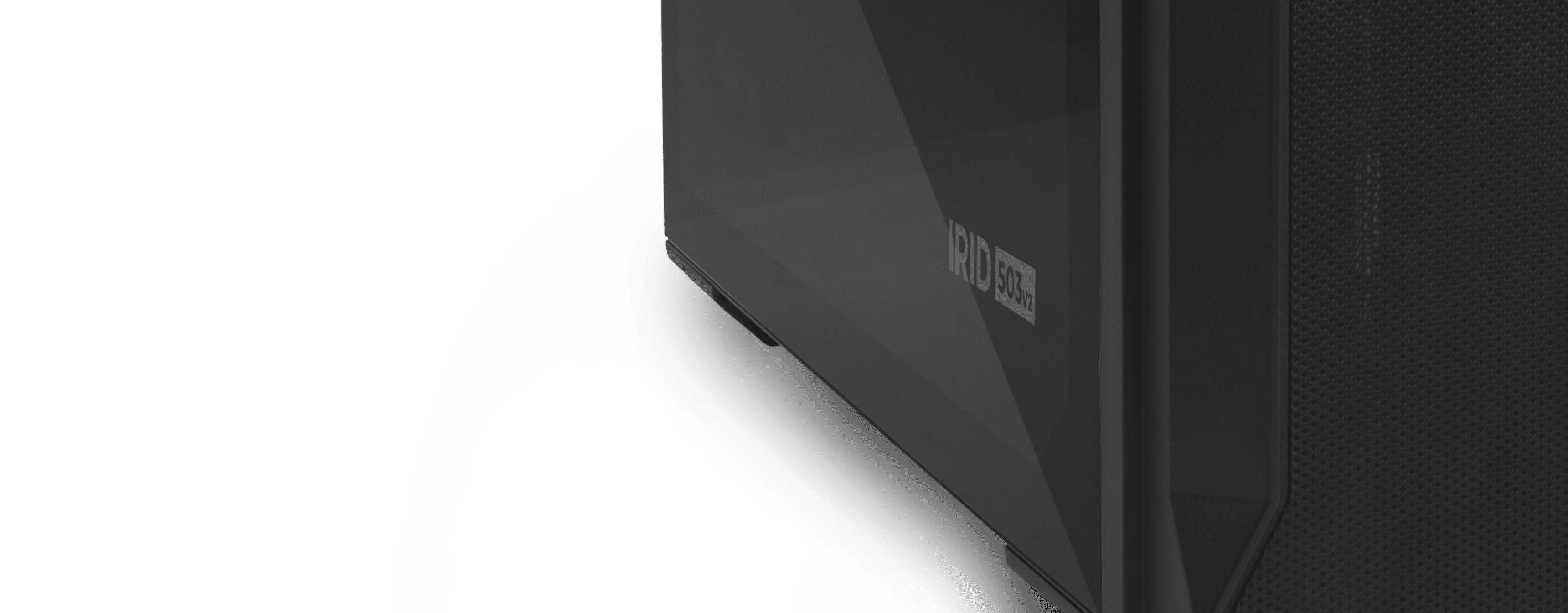

Perforated front panel, while the side panel is made of tempered glass with an aesthetic black print that perfectly masks holes in the structure. The excellent-looking black steel turns the box into an elegant work of art. The Irid 503 impresses not only with its functionality, but also with its great design, which will add class to your room, enjoying not only your eye.
Irid 503 fights heat with its two silent 120 mm fans. High-quality 120 mm fans control the conditions inside and ensure optimal temperature. If you need, you can install 2 additional fans.
To offer you complete freedom of quick-access data management, Irid 503 allows you to install up to three SSDs. In addition, you have enough space for two standard HDDs.
The case is compatible with 2 motherboard size variants. You can easily fit a Mini-ITX and Micro-ATX inside without worrying about finding matching components.

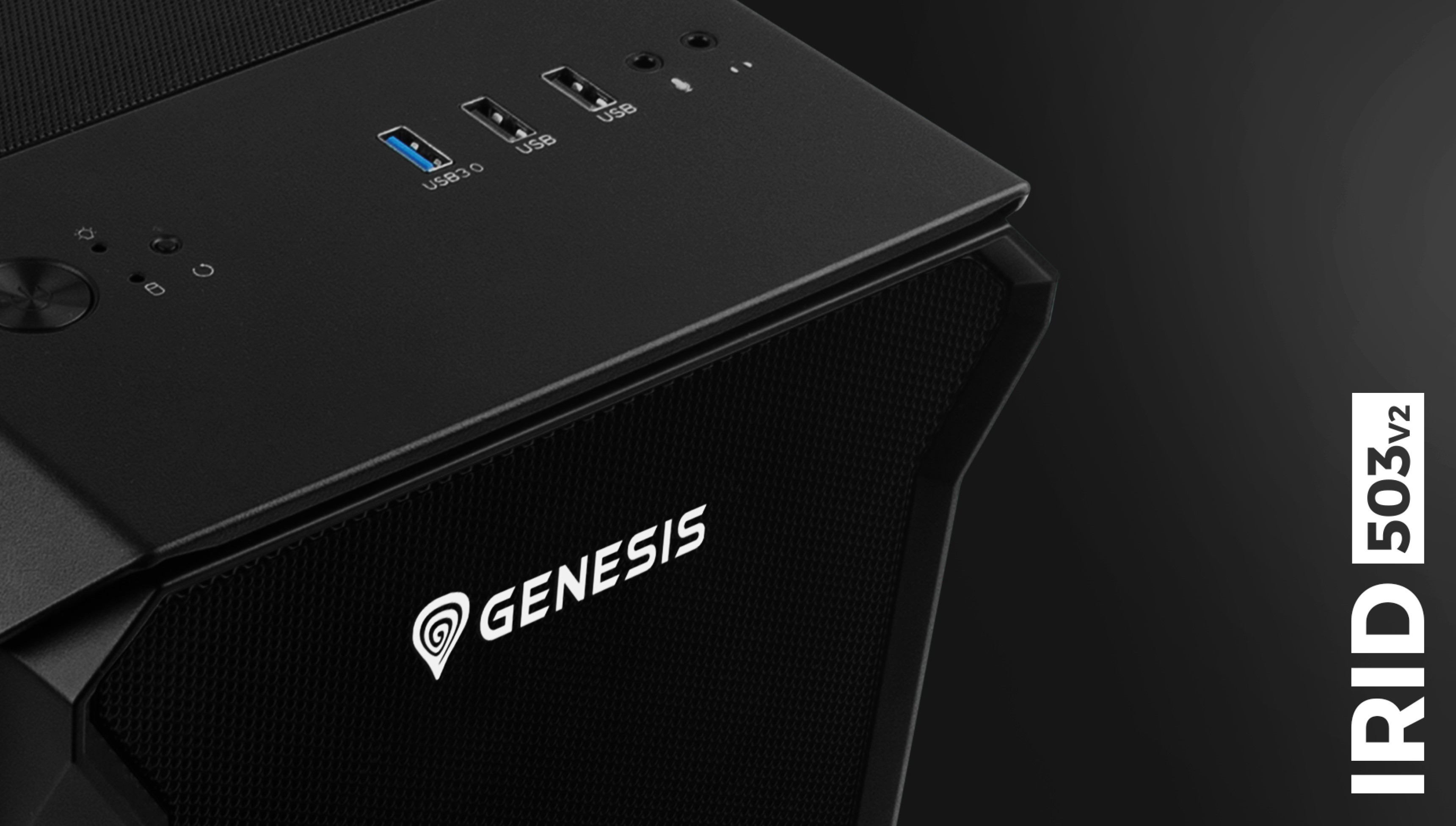

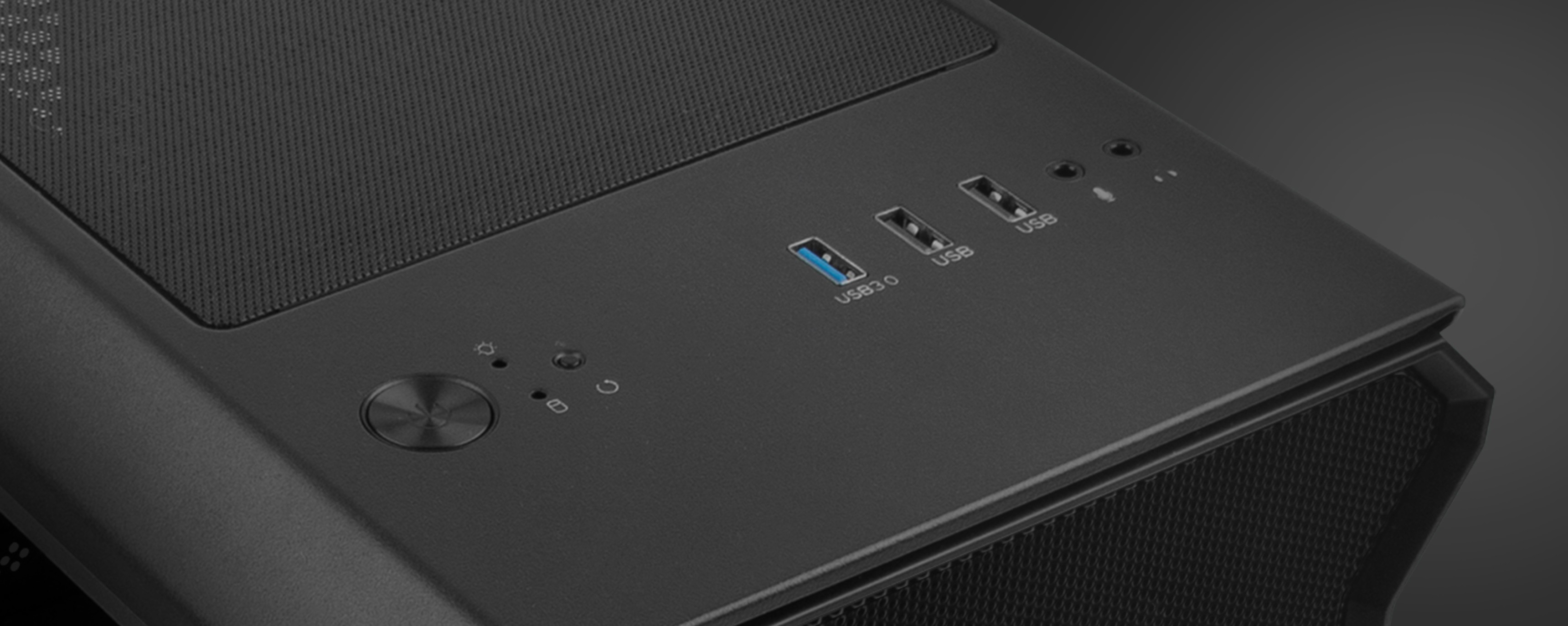

For maximum comfort of use, the top of the case comes with as many as three USB ports, including one USB 3.0 port. We have conveniently placed two jacks close to you, so that you can easily plug in your headphones and microphone.
With Genesis Irid 503, you'll find plenty of space behind the motherboard tray and numerous rubber grommets to manage your cabling without disturbing or spoiling the great view through the glass panel.
We wanted to ensure maximum comfort of use, which is why you can simply slot in your drives. This simple mechanism enables you to install and uninstall SSDs and HDDs without having to break out the tools again.
Despite the small size, we want you to give you as much freedom as possible. If needed, you can install a liquid cooler up to 240 mm! Irid 503 offers complete freedom when it comes to hardware and a wide range of cooling options.

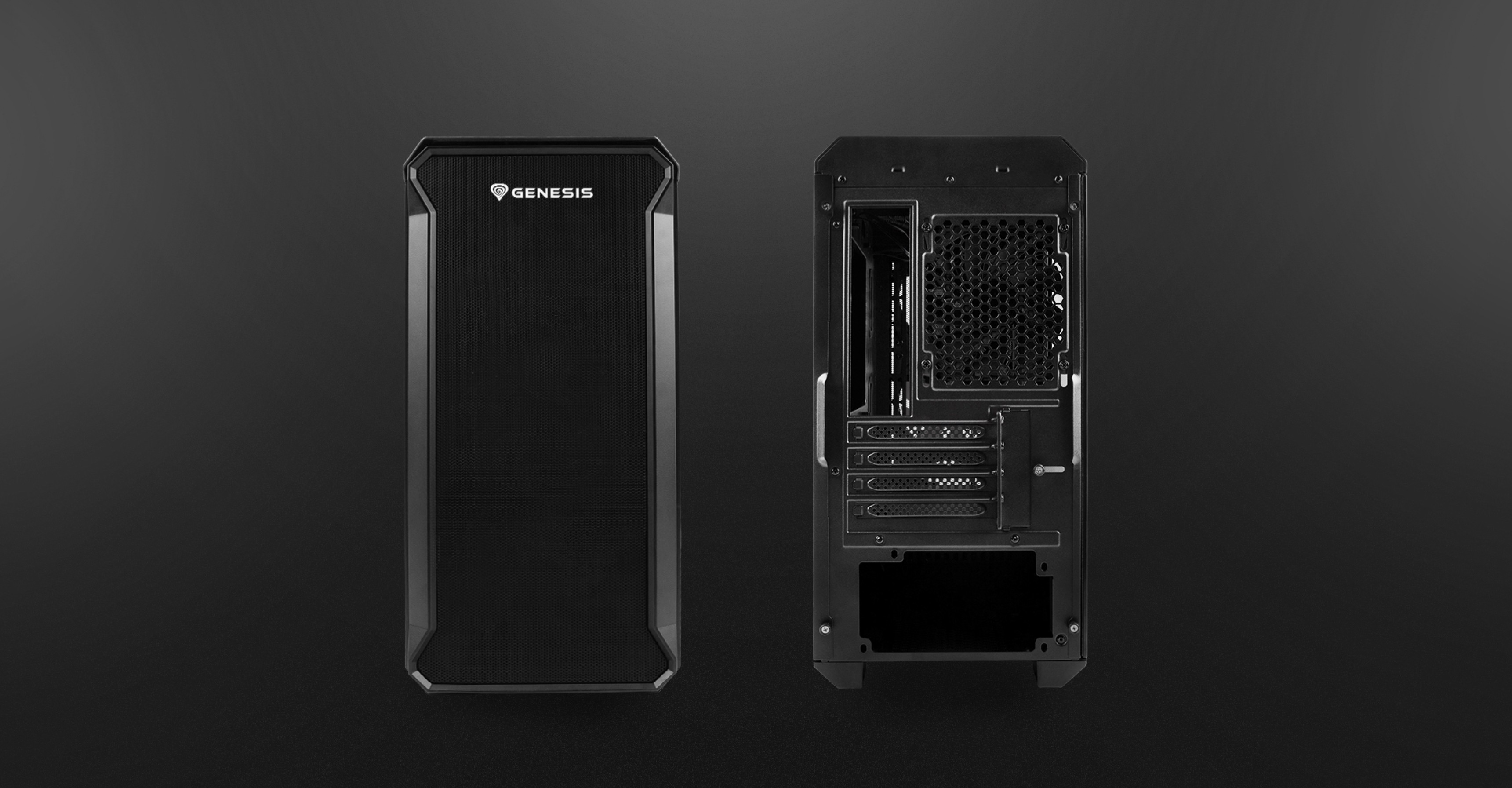

The case comes with screw-in port covers which can be reattached at any moment. Open only the ports you need and close those which you are no longer using. With Irid 503, everything looks clean and satisfying.
The case features two dust filters, allowing you to enjoy spotless cleanliness for a very long time. Genesis Irid 503 has been designed to ensure the best user experience possible.
|Liquid Cooling Support||Yes|
|Type of front panel||Mesh|
|Type of side panel||Tempered glass|
|Maximum number of 3.5" bays||2|
|Maximum number of 2.5" bays||3|
|Fan Support||Rear 1x 120 mm, Front 3x 120 mm / 2x 140mm, Front 1x 120/140/240 mm radiator, Top 2x 120/140 mm, Top 1x 120/140/240 mm radiator|

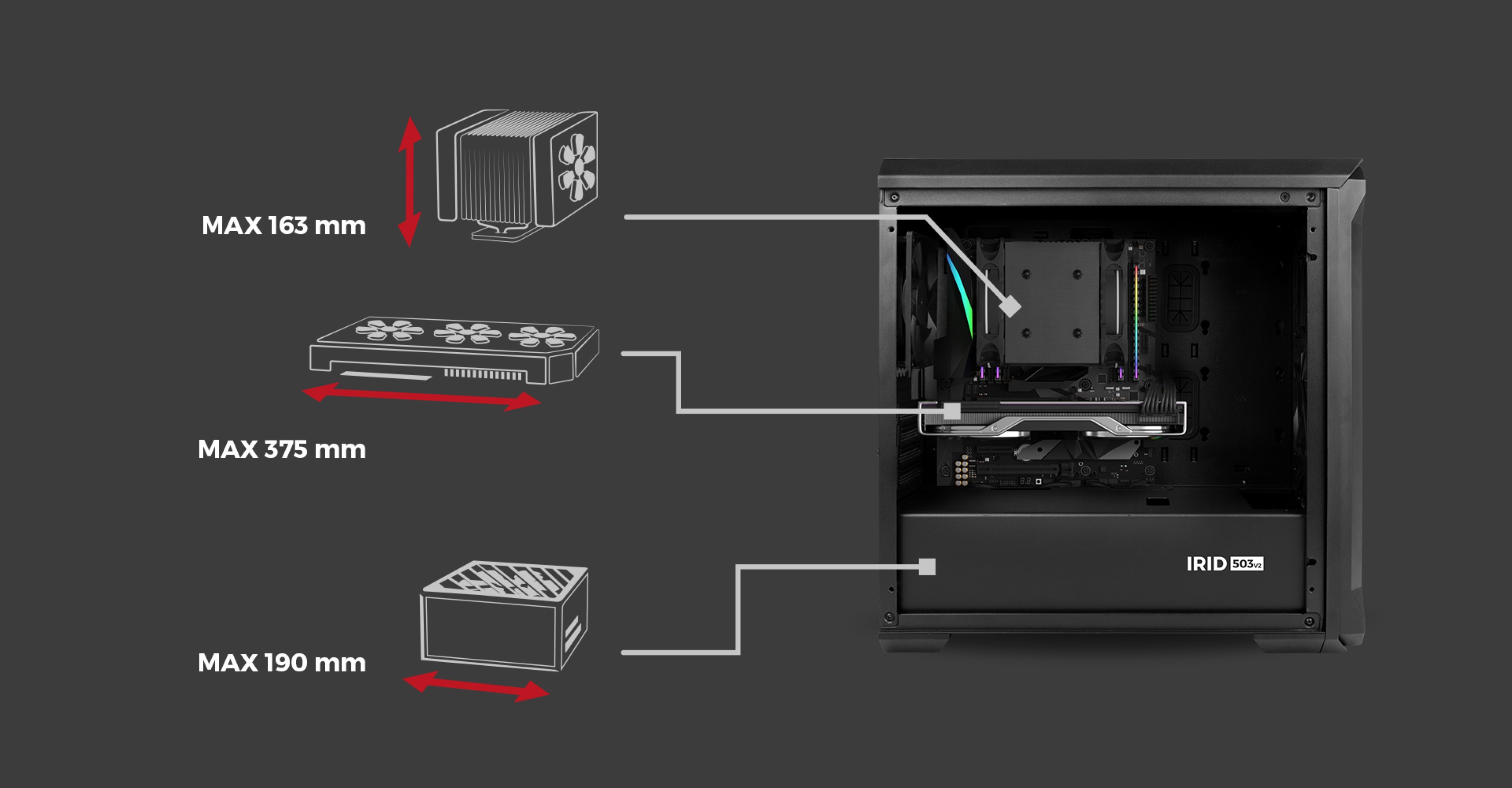

|Maximum length of the GPU graphics card||375 mm|
|Maximum CPU cooling height||163 mm|
|The maximum length of the PSU||190 mm|
|Included Accessories||Set of assembly elements, User Manual|
|Type of casing||Micro Tower|
|Motherboard form factor||Mini-ITX, Micro-ATX|
|Front panel connectors||2xUSB 2.0, 2x Jack, 1xUSB 3.0|
|Number of expansion slots||4|
|Max number of fans||6|
|Installed fans||2x120 mm|
|Number of installed fans||2|
|Material||Tempered Glass, Steel, ABS|
