FANS INCLUDED

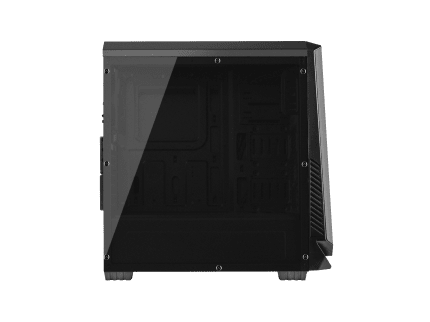

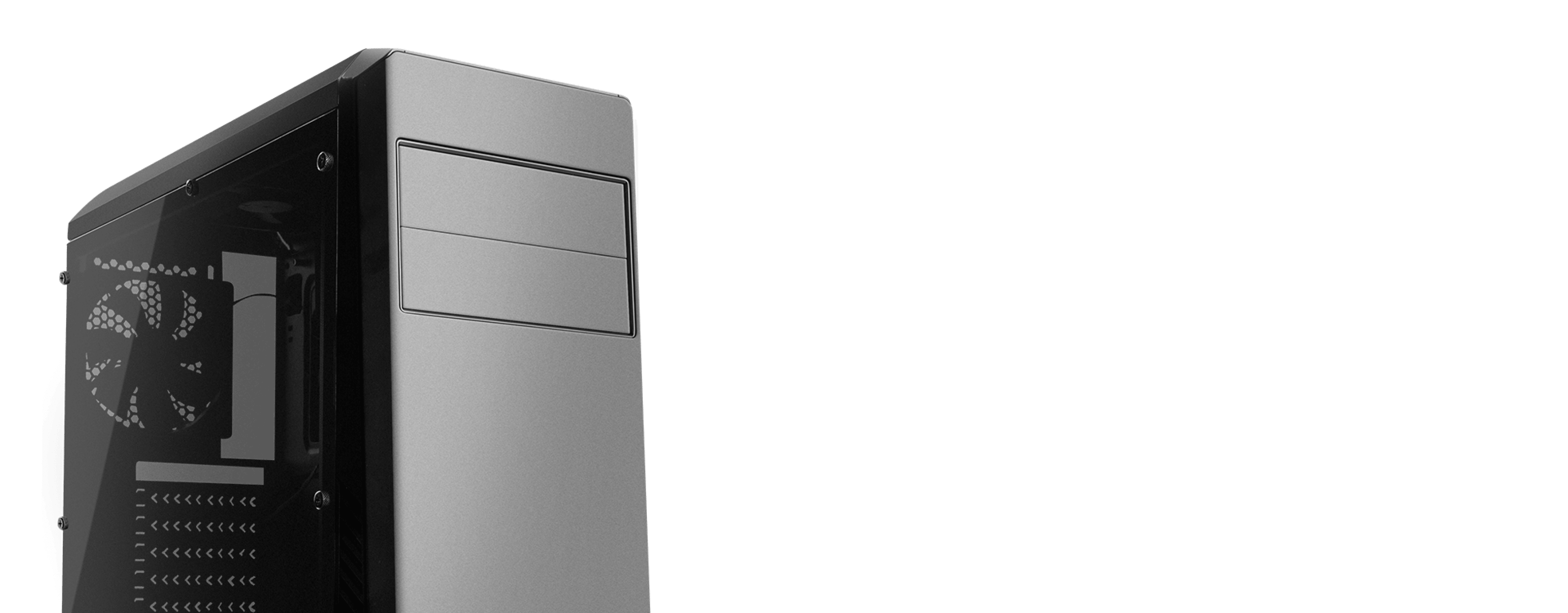

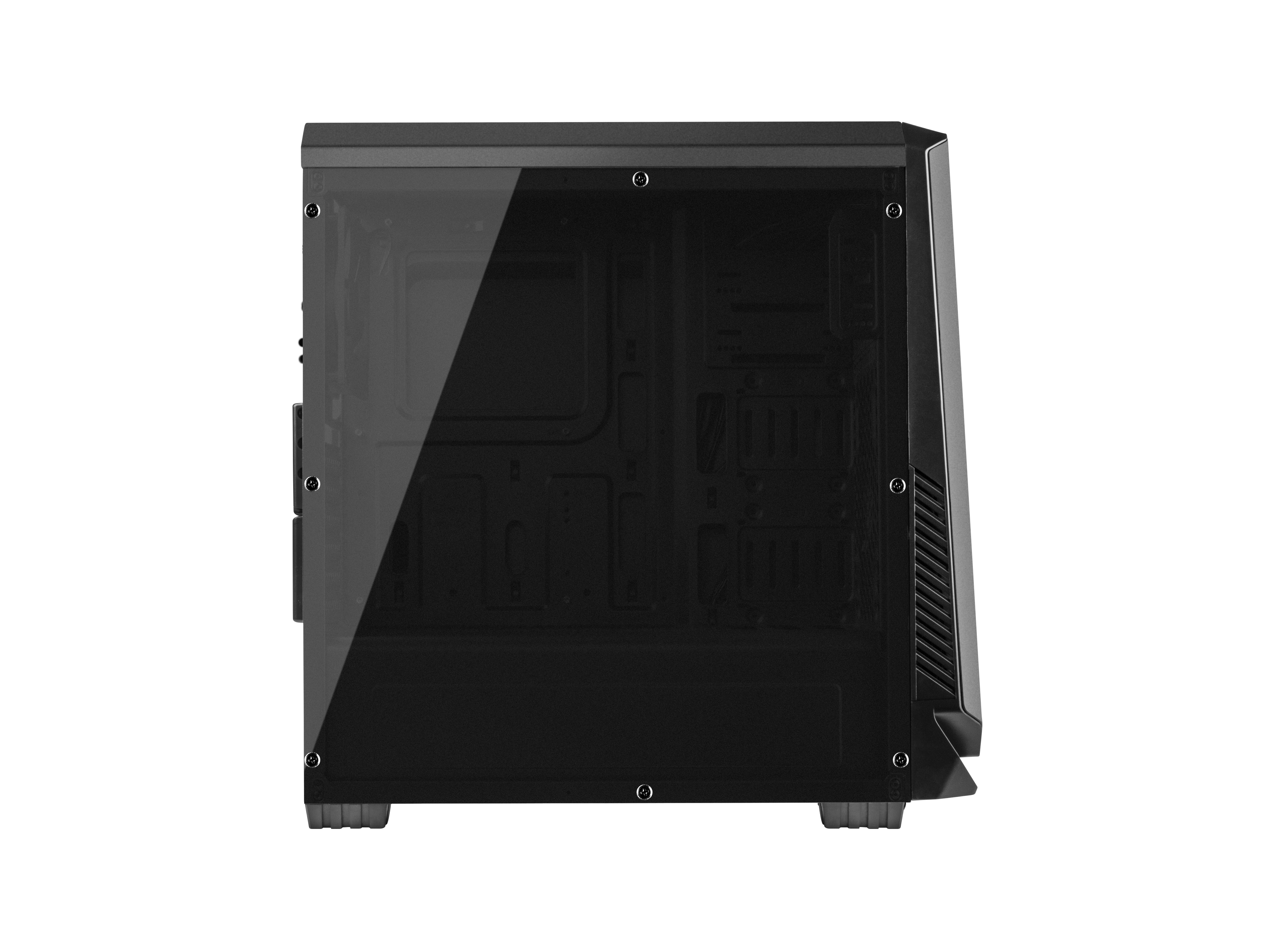

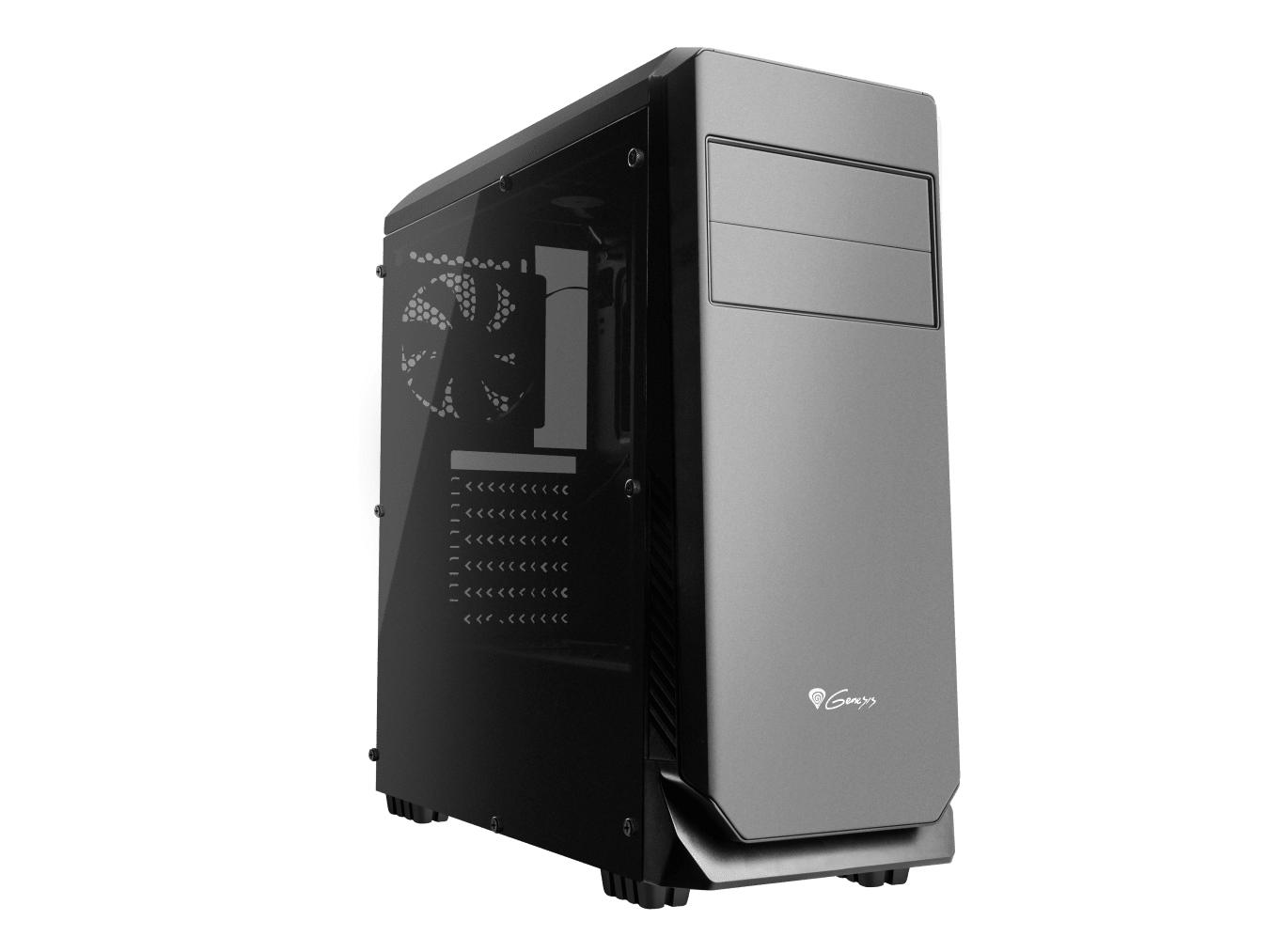

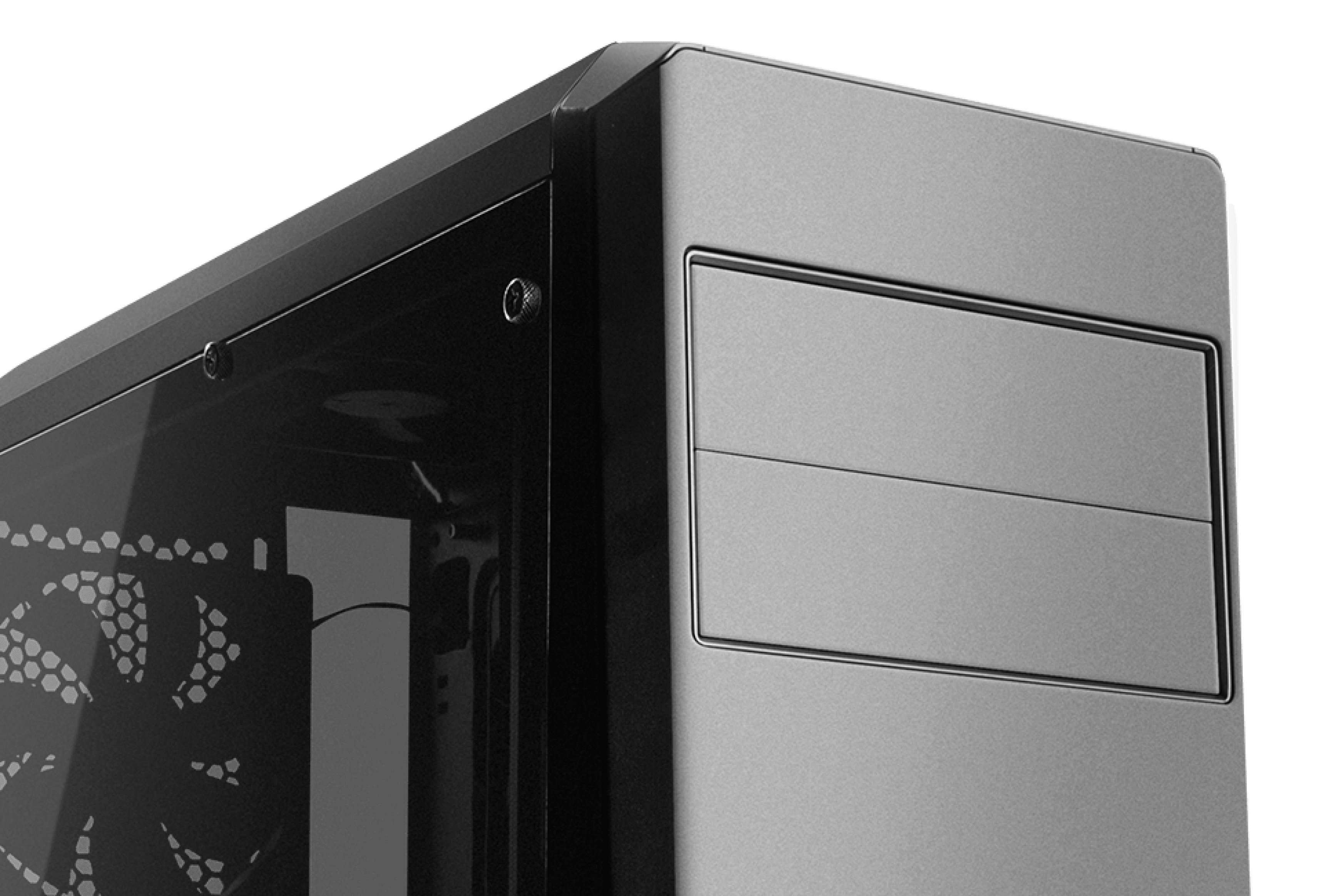

TRANSPARENT WINDOW
PSU BOTTOM MOUNTED
DURABLE BODY

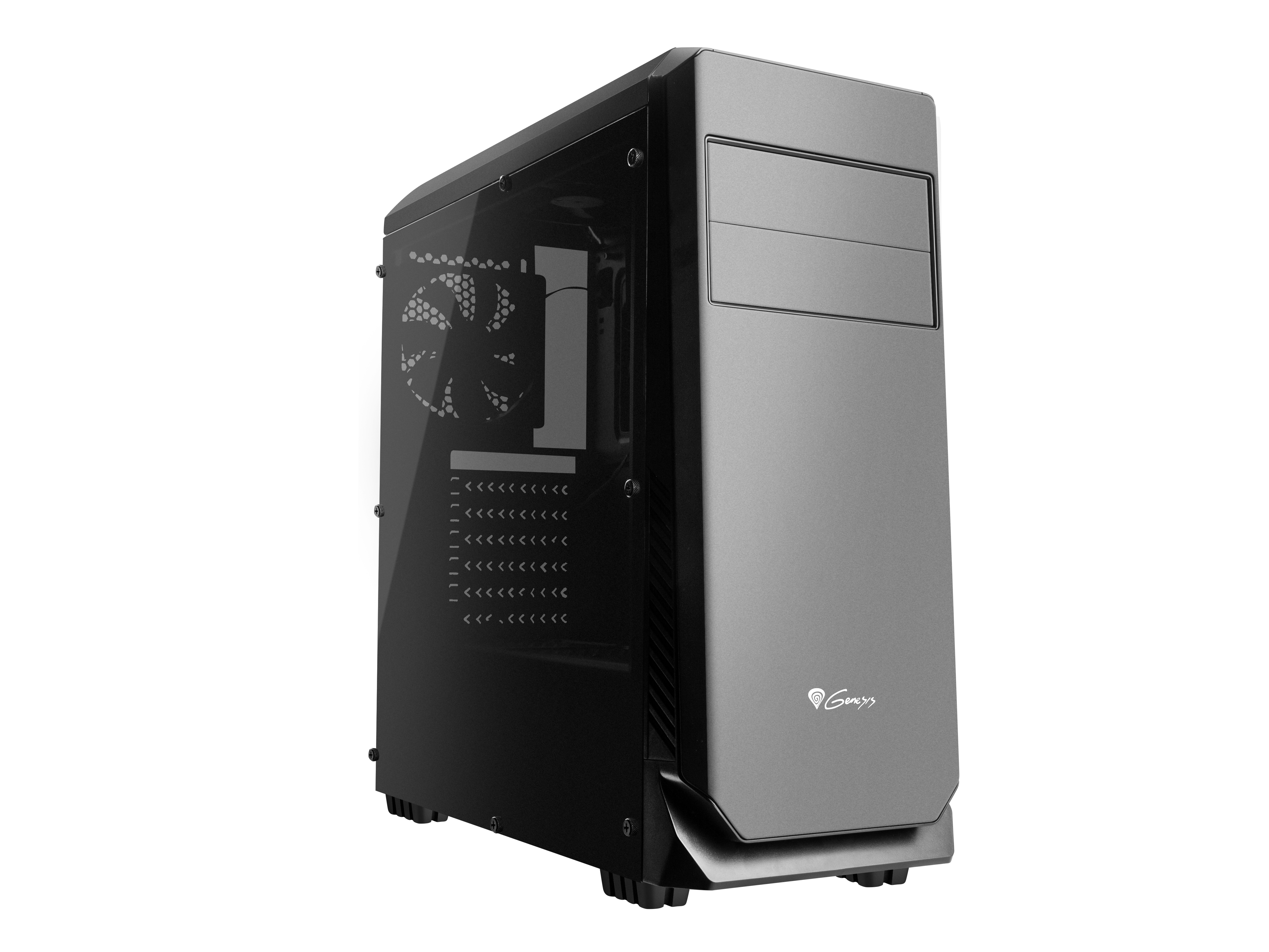

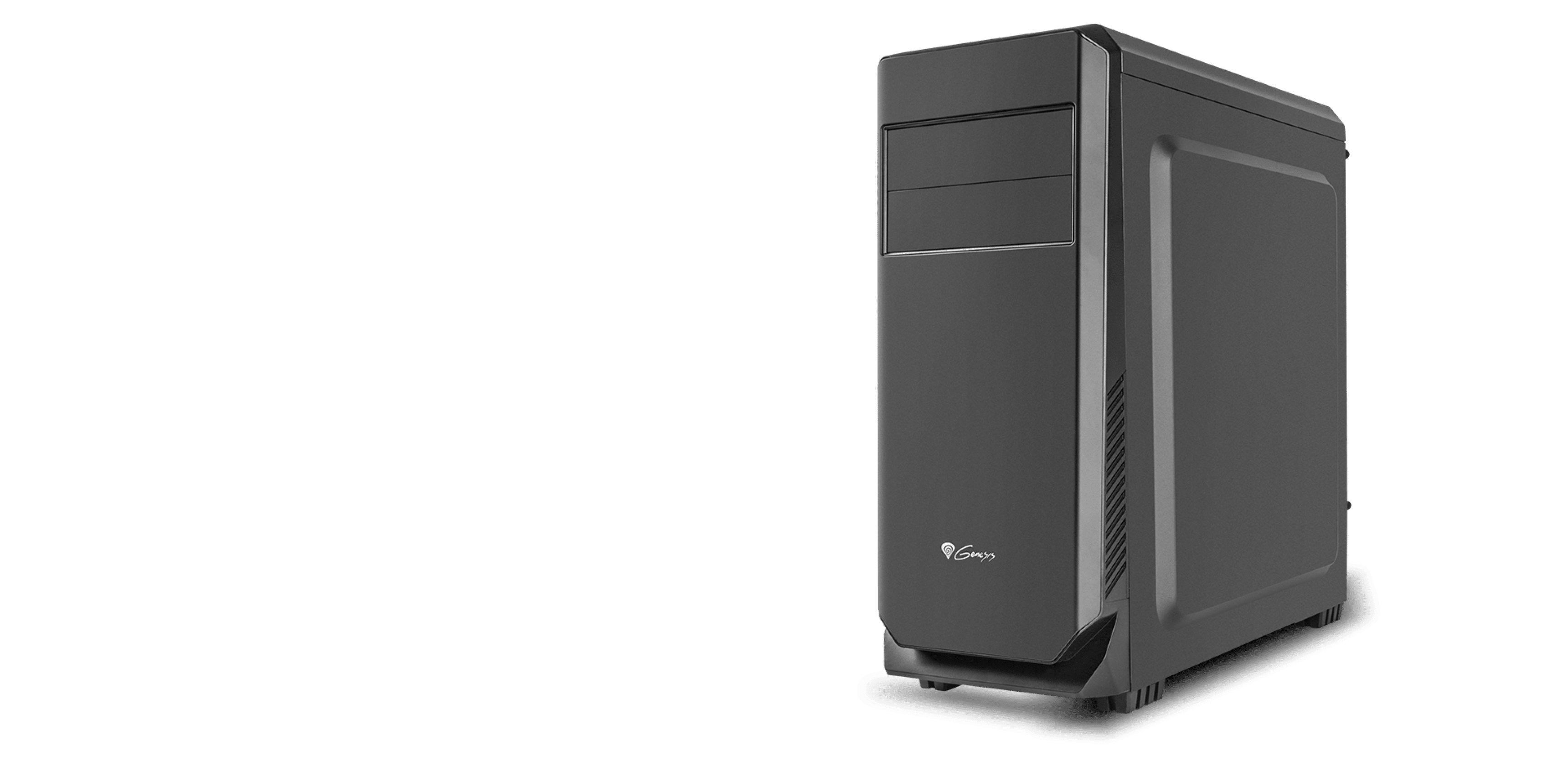

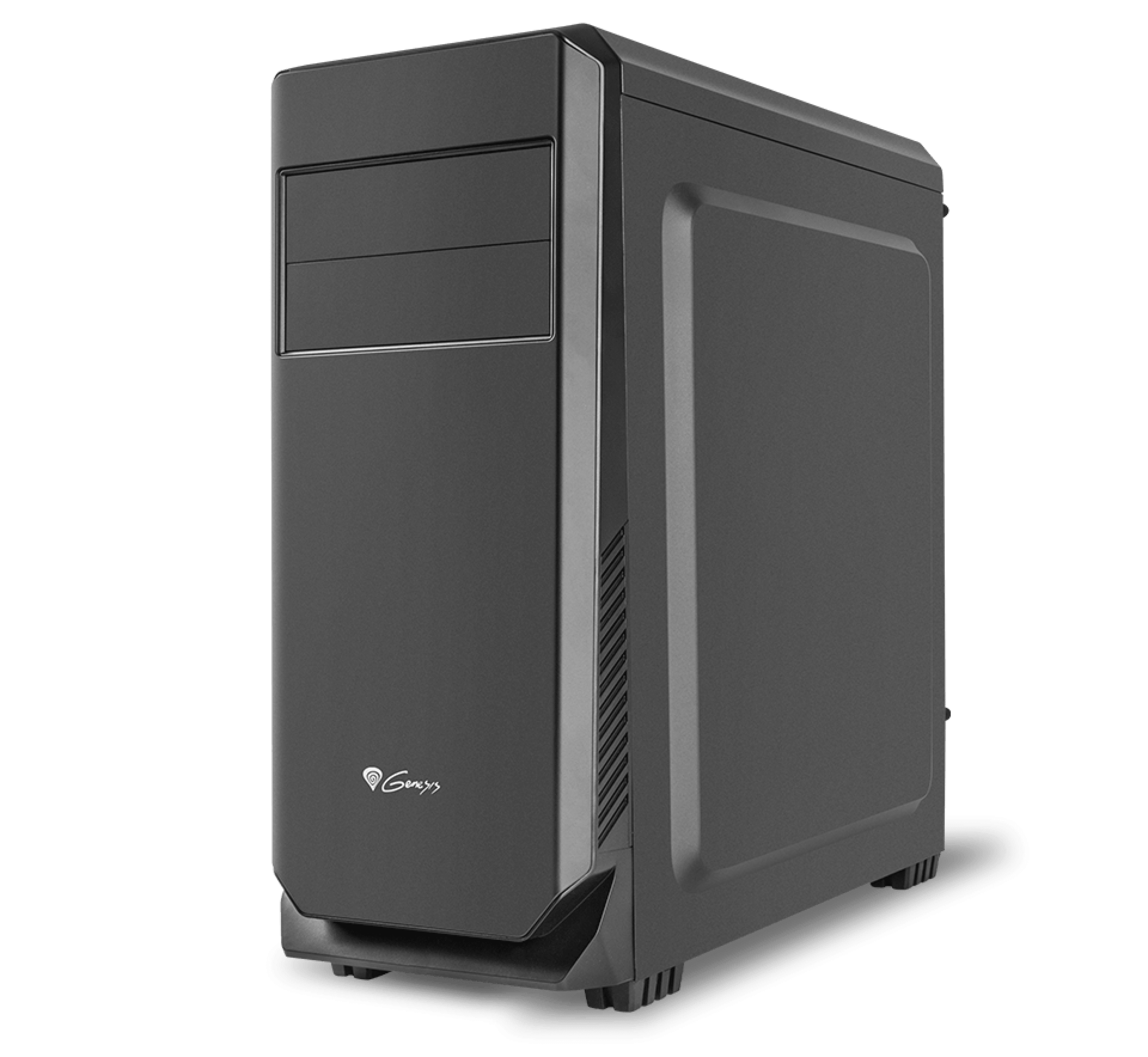

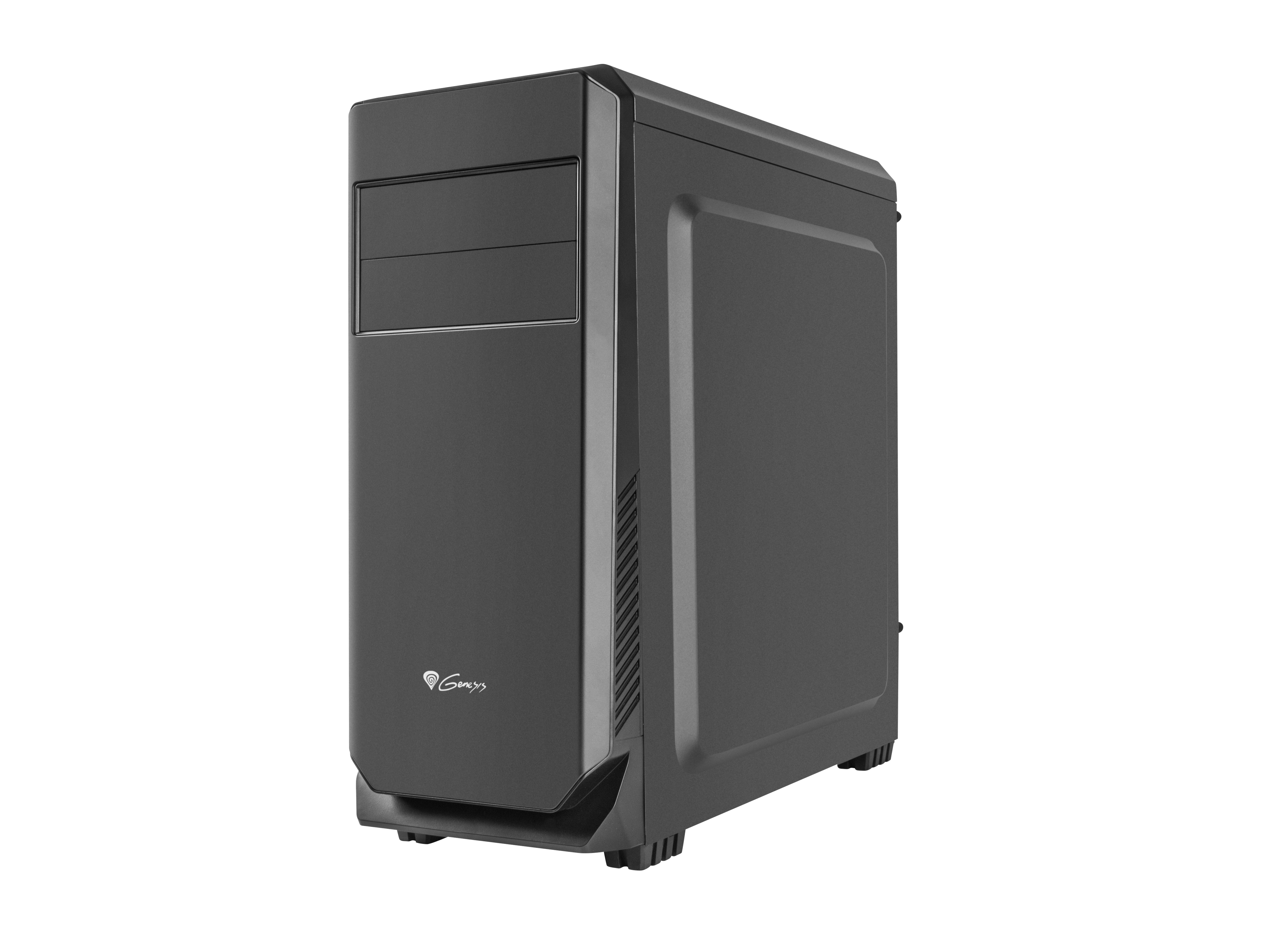

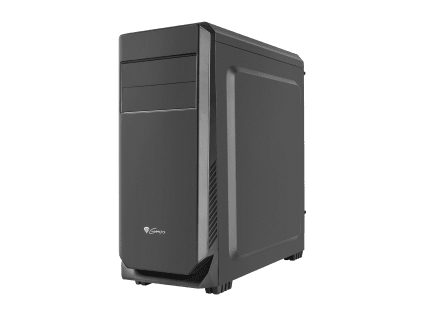

SOLID PC CASE

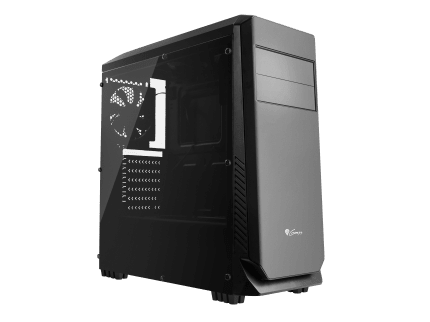

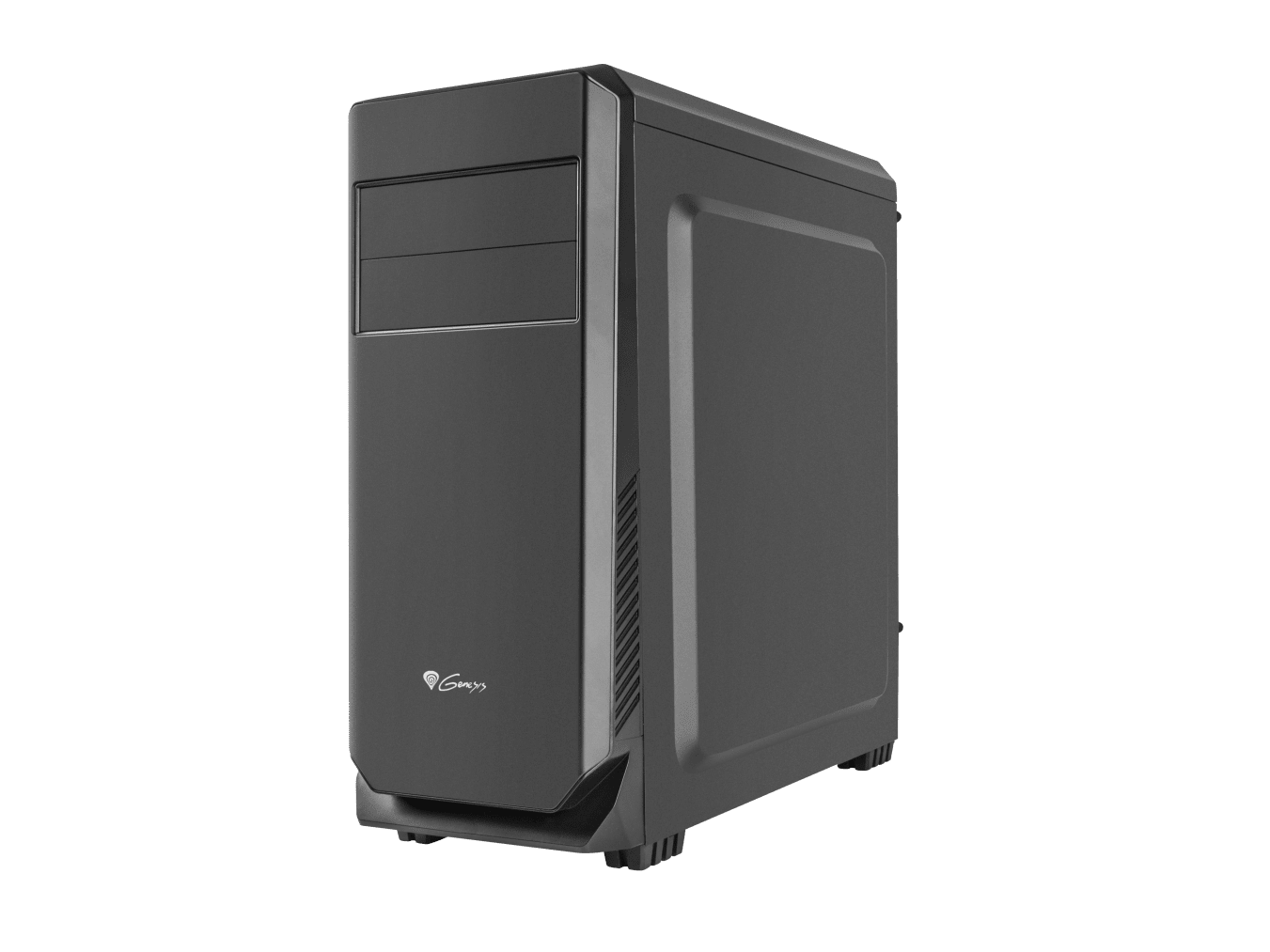

Solid gaming casing should be an armour and protection for subassemblies installed inside, but on the other hand it should assure optimal conditions for quick and efficient operation of those parts. The Genesis Titan casings have design assuring either better air circulation and appropriate silencing. The wide possibilities of internal arrangement and many other functions are assured as well.

OPTIMAL AIR CIRCULATION

Titan 550 has two 120 mm fans as a standard: one installed in the front and another one in the back; moreover the design allows for installation of 5 additional fans. A precious function is also the possibility of adjusting the fans power with use of special controller on the upper panel in the front. Moreover 2 anti-dust filters are included.

COOLING

The maximum processor cooling installation height for Titan 550 plus is 160 mm. The casing is additionally designed for installation of water cooling up to 240 mm.

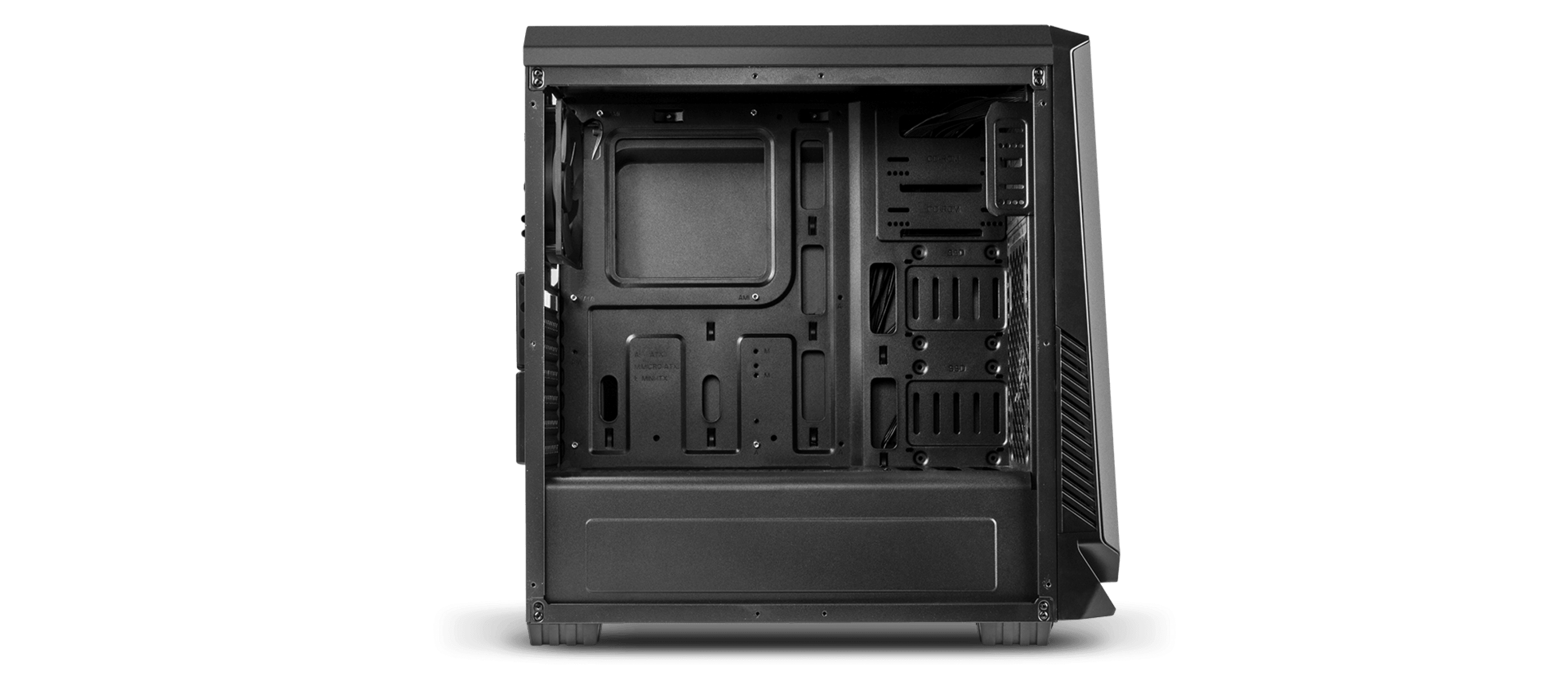

SPACE FOR SUBASSEMBLIES

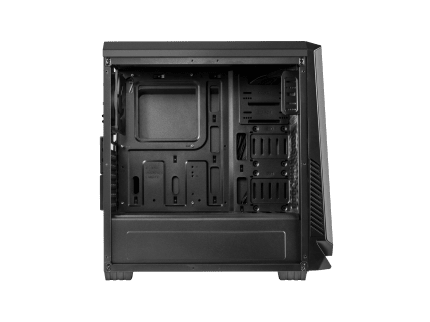

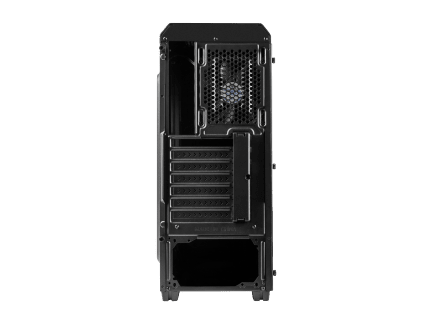

In the main chamber of the casing there is space for comfortable installation and arrangement of the individual subassemblies. The casing has drive bays 2x 5.25”, 2x 3.5”, and 2x 2.5”, as well as the possibility of installing the graphics card of length up to 380 mm. Moreover in the back part there is space designed for cable arrangement and 7 extension sockets

COMFORTABLE MANAGEMENT

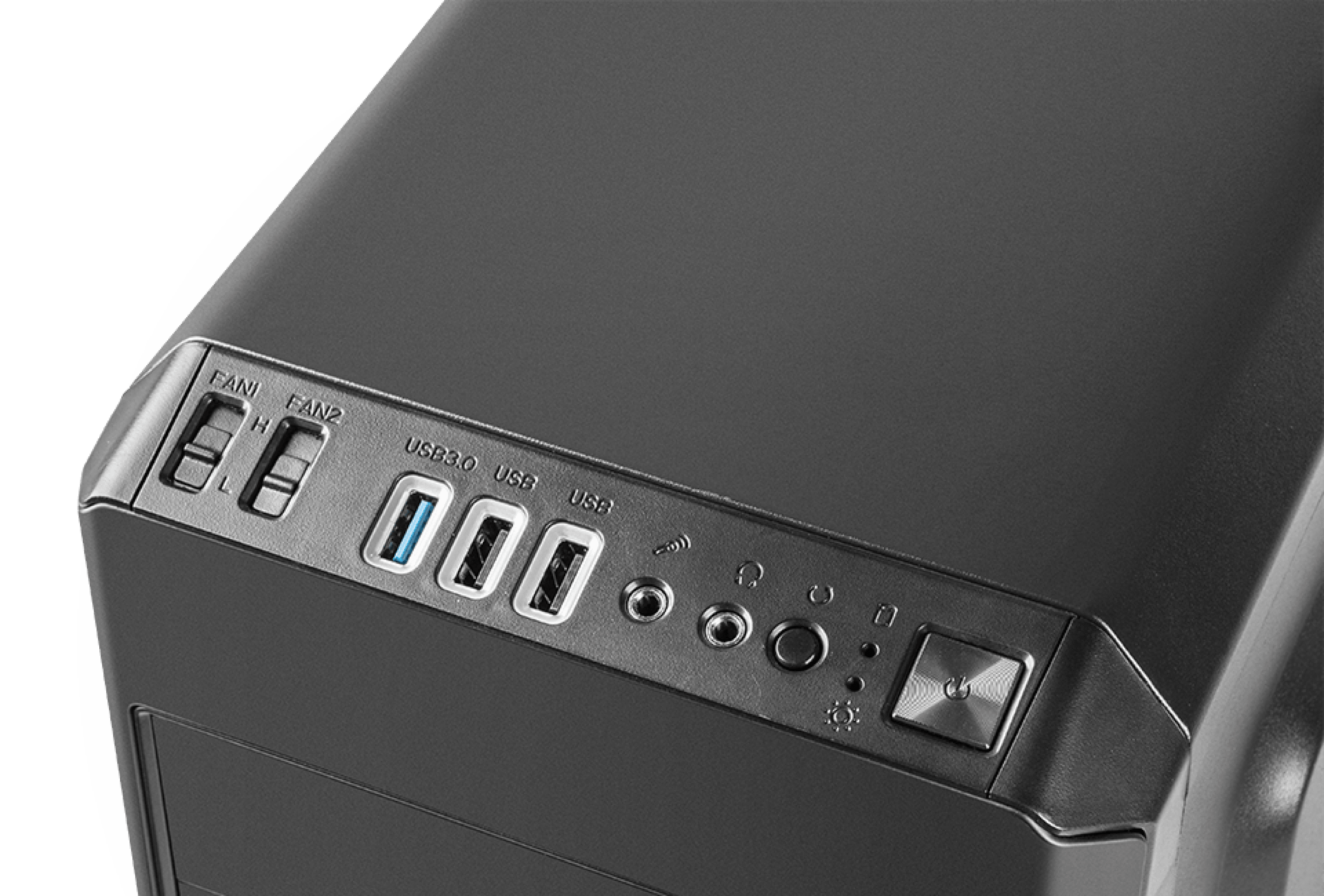

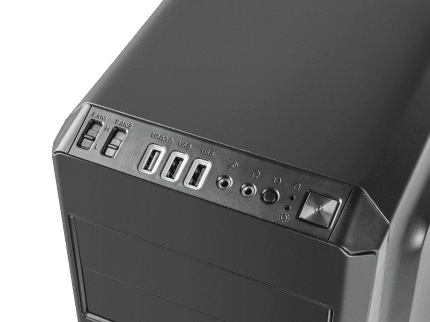

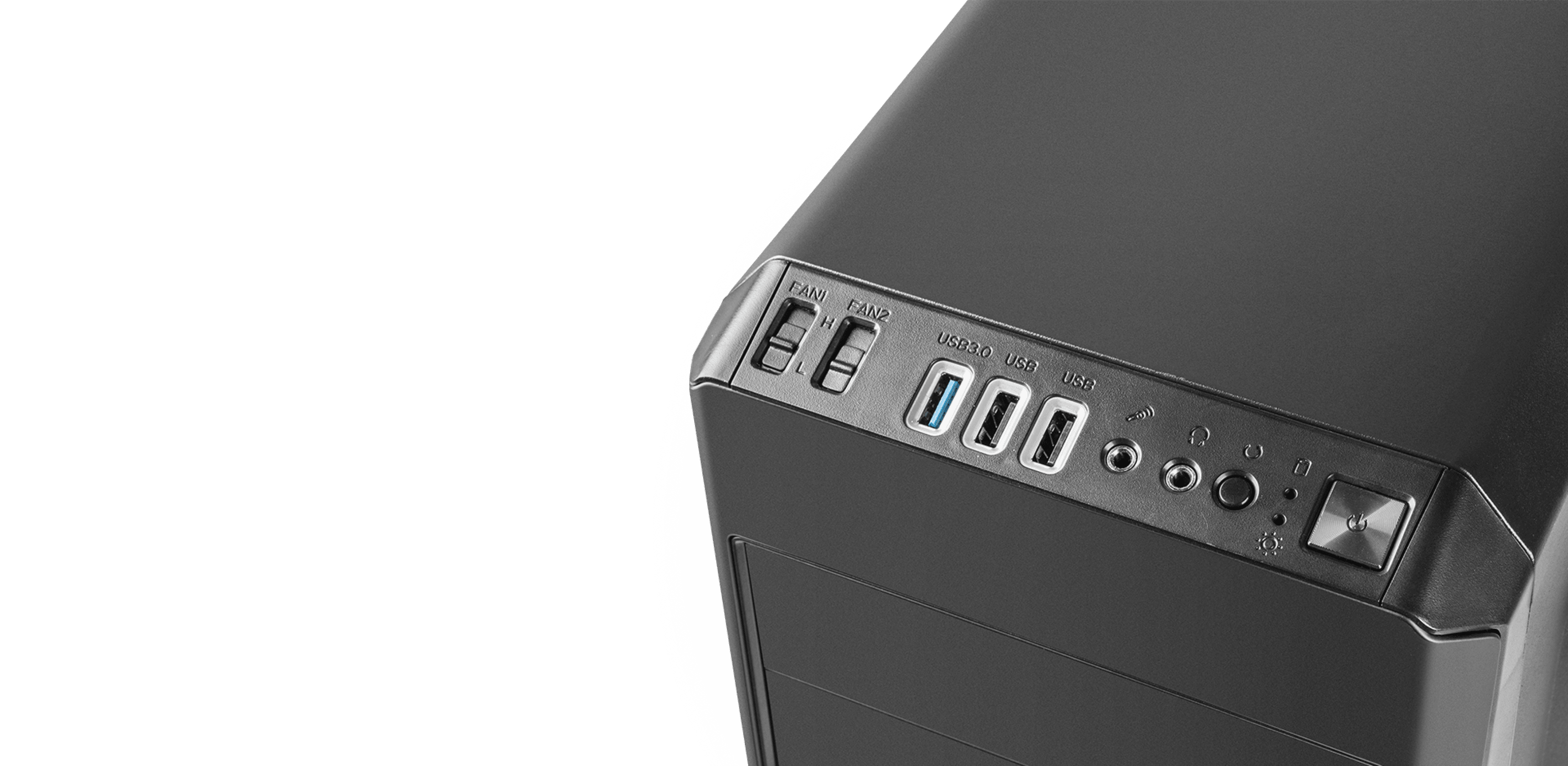

Each gamer appreciates easy and convenient access to places like USB ports or jack sockets. The Genesis casings have all ports located in the front part. Titan 550 offers USB 3.0 port, two USB 2.0 ports, and HD audio, as well as the fan controllers mentioned above.

Technical data
Product specification
The maximum length of the GPU graphics card 380 mm
Maximum CPU cooling height 160 mm
The maximum length of the PSU 200 mm
Number of bays 2x 5.25", 2x 3.5", 2x 2.5"
Construction Liquid Cooling Support, Fan speed controler, Acrylic side panel
Type of casing Midi Tower
Power supply No
Material ABS + metal
Colour Black
Protections Anti-dust filters
Functions Fan control
Weight 4.5 kg

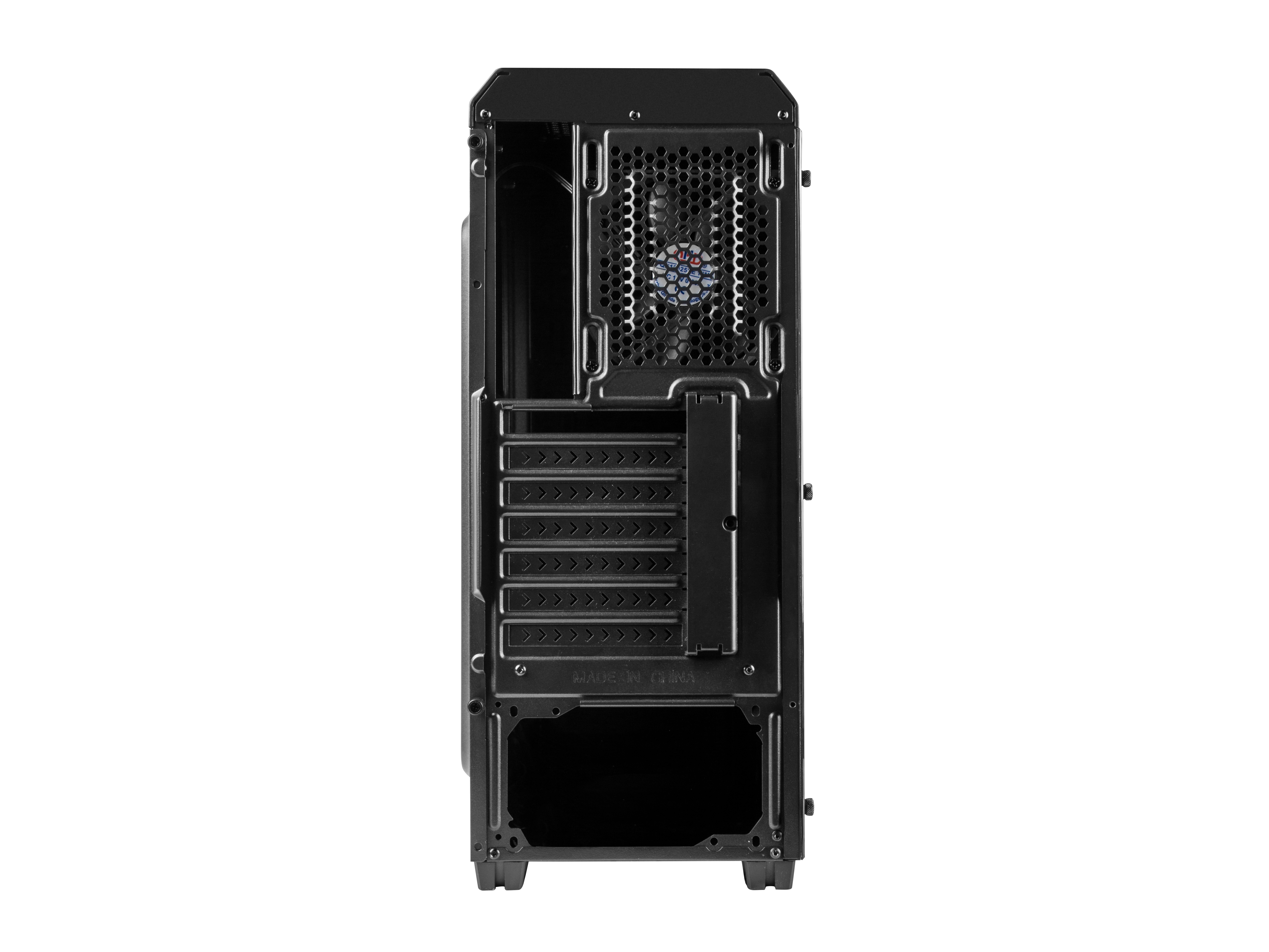

Number of expansion slots 7
Number of 2.5" bays (internal) 2
Formfaktor mini-ITX, Micro-ATX, ATX
Power supply mounting Bottom
Front panel connectors 1xUSB 3.0, 2x Jack, 2xUSB 2.0
Max number of fans 7
Installed fans 4x120mm
Number of installed fans 4
Number of 5.25" bays (external) 2
Number of 3.5" bays (external) 2
Number of 3.5" bays (internal) 2
Illumination No
Height 470 mm
Width 207 mm
Length 477 mm
